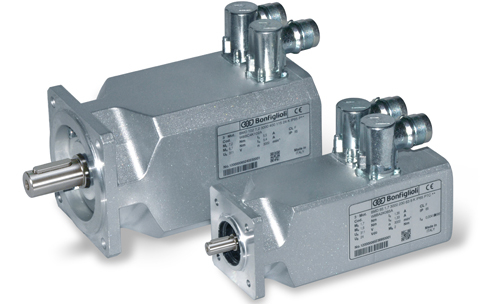

Bonfiglioli permanent magnet high performance servo motors are manufactured using the “salient pole” technology. The dimensions of the motor are drastically reduced, with considerable advantages in terms of torque density, overall dimensions and dynamic performance.
Thanks to the high quality and performance of the Neodymium iron boron rare-earth magnets maximize performance in terms of very high accelerations and withstand high overloads without risk of demagnetization of the magnets.
Stall torque
0.85 – 45 Nm
Rated speed
1600, 3000, 4500, 5500, 6000 rpm
Power supply
230, 400 Vac
Inertia
0.02 … 4.47 (Kgm2 x 10-3)
Bonfiglioli permanent magnet high performance servo motors
Conformity
2006/95/EC (LVD) and 2004/108/EC (EMC)
Electromagnetical Holding Brake (Optional)
24 Vdc
Additional flywheel (optional)
0.05 … 9.9 (Kgm2 x 10-3)
Feedback
Resolver
Encoder Single turn / multiturn Hiperface & EnDat (optional)
Sensorless (optional)
Degree of protection
IP65
IP67 (optional)
Temperature sensor
PTC
KTY (optional)
Certification
CE
