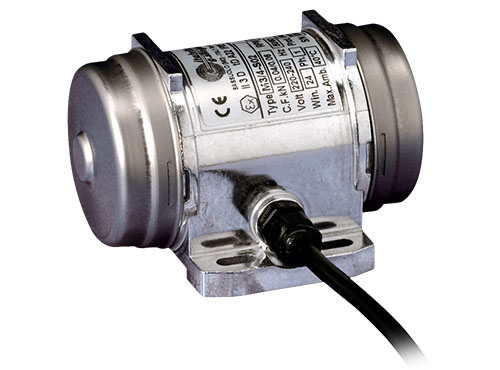

Italvibras MICRO electric vibrators

You are here:

Home
Italvibras
Italvibras foot mounted electric vibrators
Italvibras MICRO electric vibrators

Click here for immediate price quote or call us at +39 080.5367090

The Italvibras MICRO electric vibrators have been designed for continual industrial service in processes where a reduced centrifugal force and reduced overall vibrator size are required. MICRO vibrators are used in numerous applications in feeding, transport, screening, sizing, separation processes, compaction in the automatic machines used in the chemical industry, food industry, pharmaceuticals, packaging and automation in general.

Power supply
Three-phase voltage from 24V to 480V (except M3/4-S02), 50Hz or 60Hz or single phase 100-130V, 60Hz and 200-240V, 50Hz

Italvibras MICRO electric vibrators

Polarity
2 poles.

Functioning
Continual service (S1) at maximum declared centrifugal force and electric power.

Centrifugal force
Range extended to 65 Kgf. (63.8 KN).

Insulation class
Class F (155°C).

Electric motor
Three-phase and single−phase asynchronous type. The M3/4 model can only be supplied in the single−phase version and does not require a capacitor. Models M3/20 and M3/45 can be supplied both in three−phase and single−phase versions. The capacitor is already included in a case along the power supply cable.
