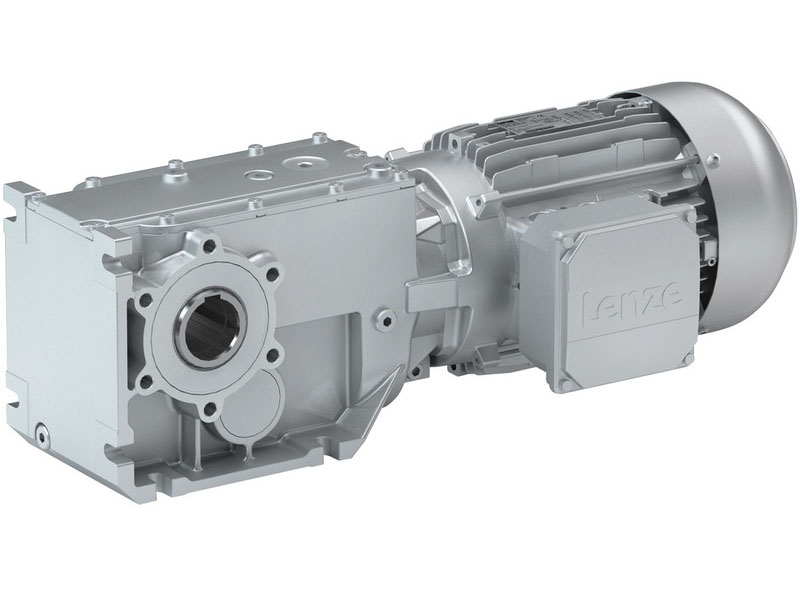

Lenze G500-B bevel gearboxes are characterised by high permissible radial forces, closely stepped ratios and a low backlash.
They are available in a 2- and 3-stage design with a torque of up to 20000 Nm and a ratio of up to i=360.
Advantages:
Highly efficient right-angle gearbox with a compact design for space-optimised assembly
Standardised shaft and flange dimensions for easy machine integration
Low backlash and high torsional stiffness guarantee precise results during positioning
Can be combined with the following motors:
With Lenze Smart Motor m300 at a rated torque of 1.75 Nm and 5 Nm
With IE1, IE2 and IE3 three-phase AC motors according to the ErP Directive in the power range from 0.06 to 55 kW
With inverter-optimised MF three-phase AC motors in the power range from 0.55 to 22 kW
With synchronous servo motors and asynchronous servo motors in the power range from 0.25 to 38.4 kW
