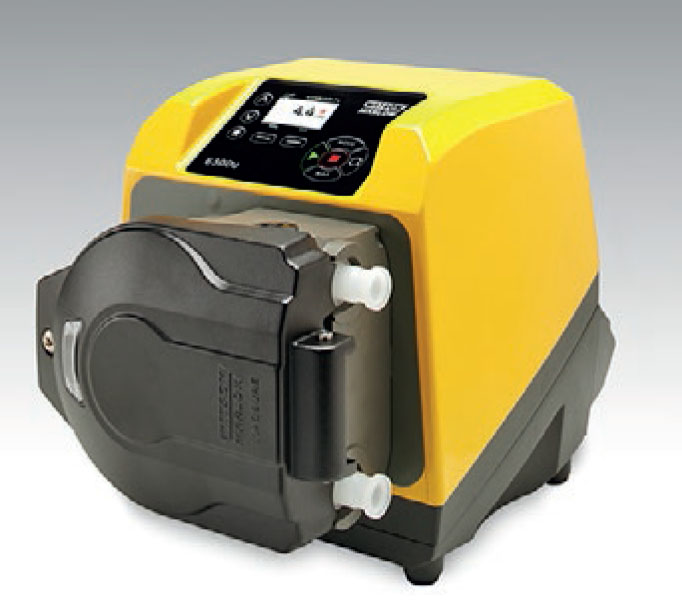

Watson Marlow 600 series mid-flow process pumps: 630S and SN, 630U and UN, 630Du and DuN, 630Bp and BpN peristaltic process pumps fitted with RE LoadSure element pumphead for 30 psi operation.
Main features
630 range of peristaltic pumps offer four drive options, color display and intuitive menu structure provide visual status indication and minimal key presses
Flow rates up to 3.5 gpm at up to 30 psi peak pressure
Industrial integration – manual, remote, Analog and digital communication, plus PROFIBUS
Keypad incorporates 3-level security PIN lock
Retractable rollers for easy tube loading and a rugged tool-lockable guard
620RE4 high-performance, accurate, four-roller pumphead with LoadSure® rapid tube element change technology
S, U, Du and Bp pumps are NEMA 2 rated cased pumps. SN, UN, DuN and BpN are NEMA 4X rated cased pumps
Watson Marlow 600 series mid-flow process pumps
630S – NEMA 2 and 630SN – NEMA 4X are simple, plug-in and switch on pumps offering economy of ownership. Ultimate process security with a 3 level PIN lock.
630U – NEMA 2 and 630UN – NEMA 4X with all the features of the S/SN models, plus configurable inputs and outputs.
630Du – NEMA 2 and 630DuN – NEMA 4X with configurable inputs and outputs, plus RS232 and RS484.
630Bp – NEMA 2 and 630BpN – NEMA 4X with real time communication makes your process secure and flexible. Bus speed 9.6 kbits/s up to 12000 kbits/s connectivity
